DGTQ PANEL WEIGHING INDICATOR | DINI ARGEO
MAIN FEATURES
- Easy to use 5-key waterproof keyboard.
- Highly efficient red LED display with 6 13-mm digits and 6 LEDs for showing active functions.
- Case for panel mounting in Abs according to DIN standard, 96x96x80 mm (lxhxpx).

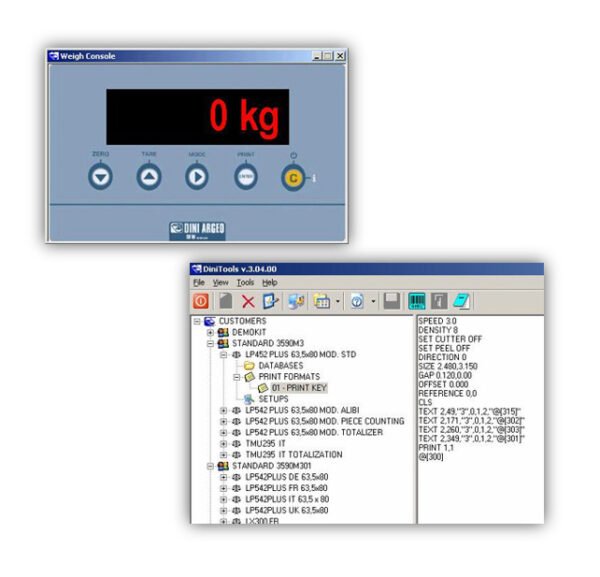

- Panel cutout 90×88 mm (lxh) for panel mounting. Calibration, Set-Up parameters, configurable from keyboard or from PC with DINI TOOLS
- Up to 10.000e or multirange 2 x 3000e @ 0,3 µV/e in CE-M approved version for legal for trade use.
- Up to 800.000 displayable divisions with internal resolution up to 3.000.000 points.
- Up to 8 signal linearization points with DINITOOLS (3 from keypad).
- A/D 24-bit sigma-delta conversion, up to 400 conv./sec. autoselect.
- Connectable with up to 8 analogue load cells with 350 Ohm input resistance.
- Management of a digitally equalized 4-cell weighing system or management of 4 independent weighing systems. Master/Slave management (up to 4 Slaves / 1 Master).
- From 12 Vdc to 24 Vdc power supply.
I/O SECTION
- RS232/C bidirectional port configurable for connection with external units.
- RS485 or RS232/C bi-directional port configurable for network connection.
- PROFIBUS serial interface (DGTQPB model).
- 2 photo-offset outputs, expandable to 6 through the C4OUT option: 150 mA 48 Vac / 150 mA 60 Vdc (NO), with configurable functions.
- 2 optoisolator photocoupler inputs: 12÷24 Vdc, 5 mA min – 20 mA max, with configurable functions.
- 16-bit analogue output (DGTQAN model) 4-20mA / 0-5Vdc / 0-10Vdc at choice.
- Maximum load applicable on the output current: 300Ohm.
- Minimum load applicable on the output voltage: 1kOhm.
