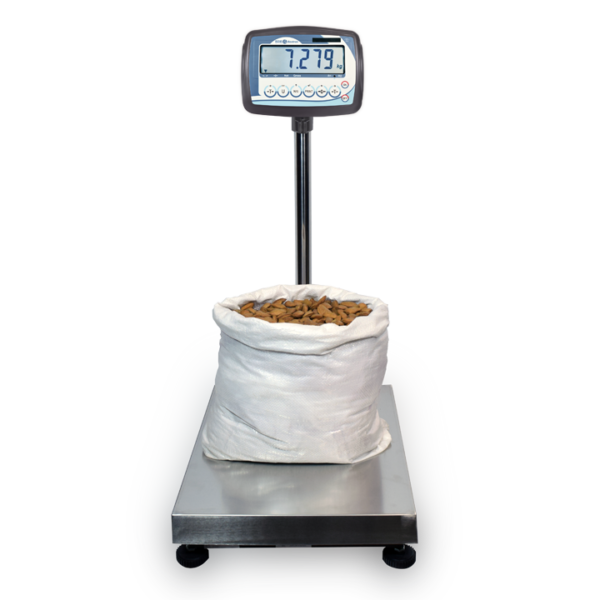

TMN | BENCH SCALE – 60 Kg

BAXTRAN TMN 60Kg

BENCH SCALE

• Tubular structure in painted steel, with pan in stainless steel and a stainless steel column.
• Aluminium load cell with protection Ip65.
• Column of 649 mm with a base for anchoring of painted steel (Model P 447 mm).
• 4 adjustable feet in height, up to an increase of 13 mm.
• Cable lenght of the platform-indicator: 1.200 mm (up to 1.370 mm, depending on the model).
• EC pattern approval.
• Approval type at 3.000 divisions OIML class III.

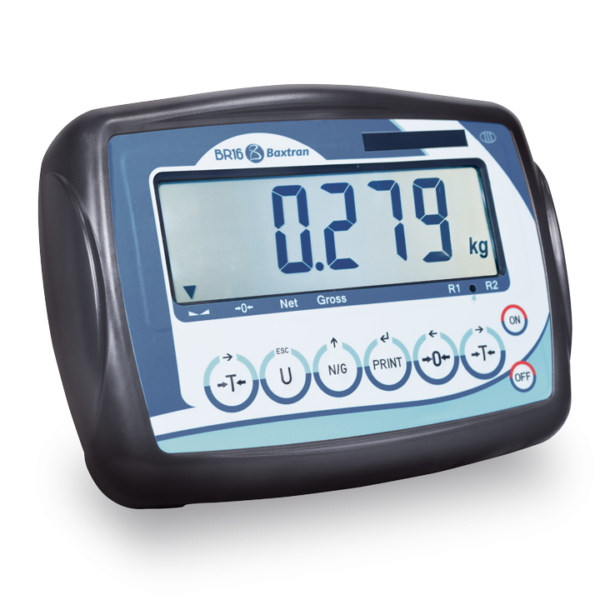

• ABS indicator model BR16.
• Weight-tare indicator.
• IP54 protection.
• Spill-resistant keyboard with 6 keys of functions and switch on and switch off keys.
• Backlight LCD display with 6 digits of 40 mm.
• Backlight of the display with 3 types: automatic, activated and deactivated.
• ABS support for column.
• Holes for wall anchor included.
• Operating temperature range: -10ºC +40ºC.
• Power supply with adaptor AC/DC 240Vac 50 HZ.
• Rechargeable internal battery 6V/4Ah.
• Battery life with activated back-lightning and RS232 ON: 80 hours approx.
• Battery life with back-lightning disabled and RS232 OFF: 320 hours approx.
• Units: kg.
• RS232 output with PC and printer format.
• Unique range / Multi-range.
• Auto switch off (programmable from 1 to 99 minutes).

Item Code	Capacity (kg)	Readout (g)	Pan dimensions (mm)	Legal metrology
260662	60	20	350×450
