DELTA MS300 VFD17AMS43ANSAA
DELTA MS300 Series Drive
| Model Name | VFD17AMS43ANSAA |
| Series | MS-300 Series |
| Input Voltage – Phase | 460 V – 3 Phase |
| Motor Power Range | 10 HP – 7.5 KW |
| Frequency | 0 – 599 Hz |
| Frame Size | D1 |
| IP Level | IP 20 |
| EMC Filter | Optional |
| Normal Duty* Amps | 20.5 A |
| Heavy Duty** Amps : | 17 A |
| Weight | 5 Lbs |

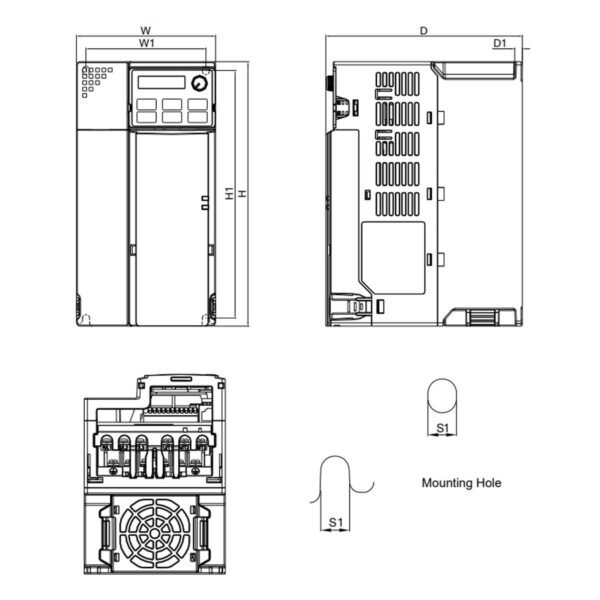

| Dimensions | 4.29 (in) x 8.15 (in) x 6.06 (in) |
- Description
- Additional information
- Store Policies
- Inquiries
Description
DELTA MS300 VFD17AMS43ANSAA
- Series: MS-300
- 460 V
- 3 Phase
- 10 HP
- 7.5 KW
- 0 – 599 Hz
- IP 20
- Optional EMC Filter
- Heavy Duty Output: 17 A
- Normal Duty Output: 20.5 A
The MS300 is Delta’s compact vector control drive line. VFD17AMS43ANSAA
Optimized Space Utilization
Compact Design | Side-by-Side Installation
Communication Options
Built-in RS-485 (Modbus) and various communication card options: CANopen, PROFIBUS DP, DeviceNet, MODBUS TCP, EtherNet/IP, EtherCAT, PROFINET. Removable 5-digit LED keypad for remote operation
Outstanding Drive Performance
Supports IM and PM Motors | High Starting Torque | Enhanced Braking Capability | Fast Response to Load Impact | Deceleration Energy Backup (DEB)
Strong System Support
Multi-motor Control | Pulse Control | Built-in PLC | Tension Control | DC 24 V External Power | High Overload Capability | Built-in Brake Chopper | Closed-Loop Control
Wide Range of Applications
Rewinder Machines | Slitter Machines | Printing Machines | Drawing Machines | Coil Winding Machines | Machine Tools | Woodworking Machines | Textile Machines
cesqatar
Additional information
| Brand | DELTA |
|---|
General Inquiries
There are no inquiries yet.
