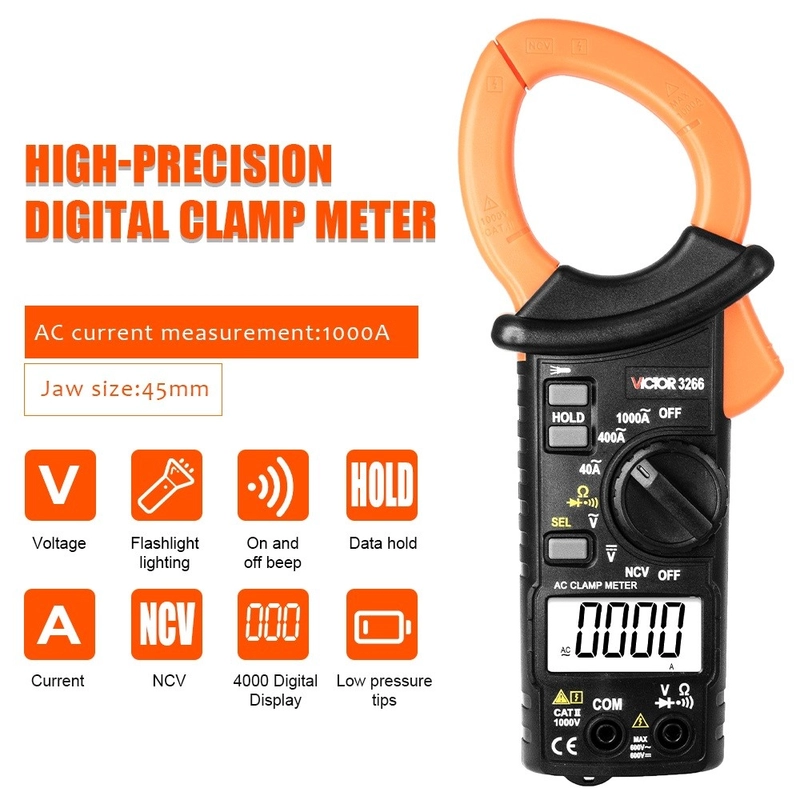

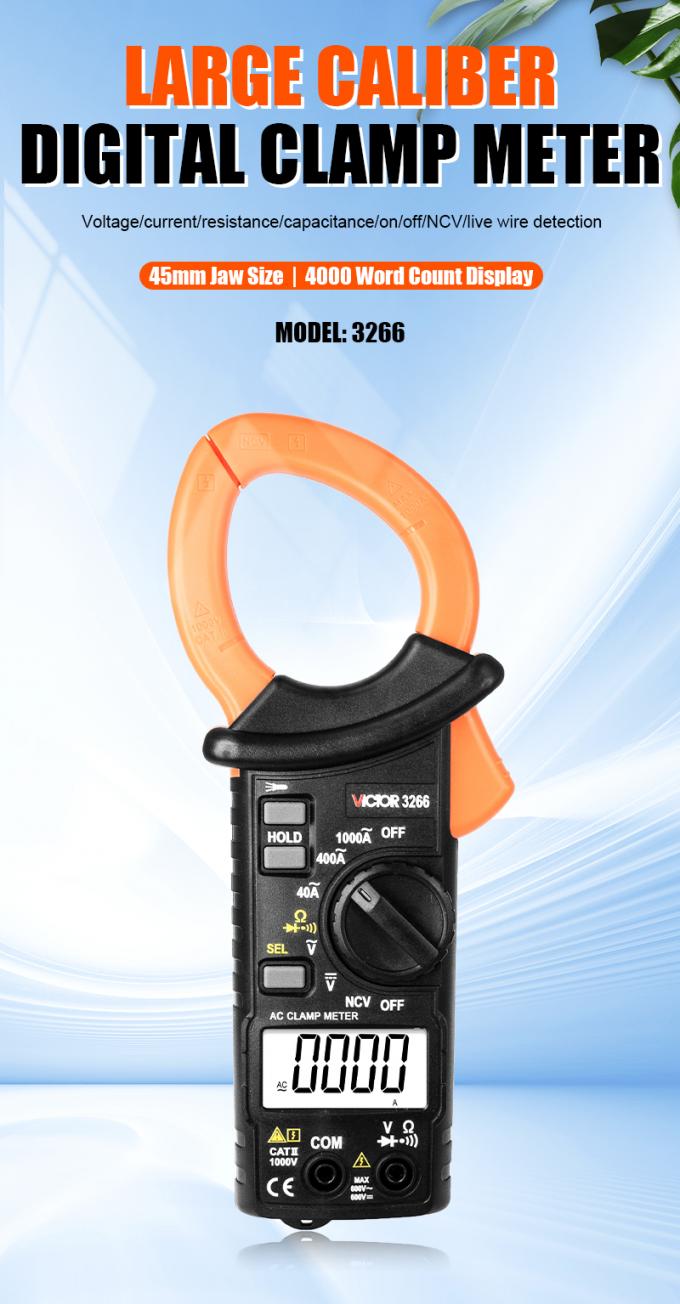

VICTOR 3266 HIGH-PRECISION DIGITAL CLAMP METER

Description

VICTOR 3266 HIGH-PRECISION DIGITAL CLAMP METER

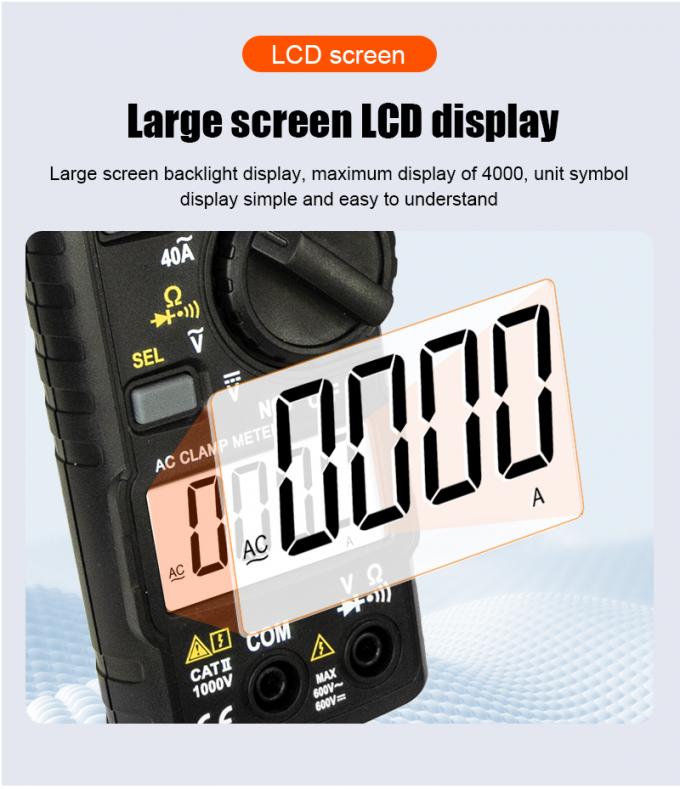

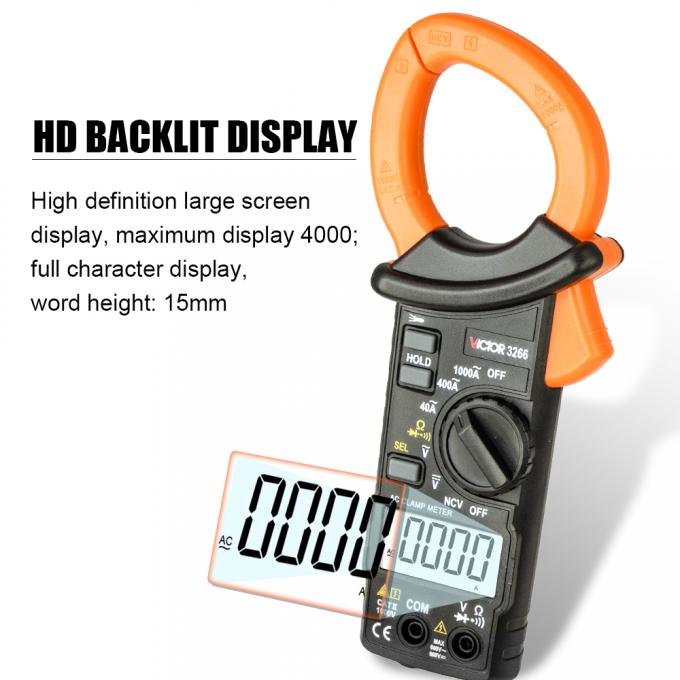

large screen display maximum display 4000 word height 15m

Ⅰ. INTRODUCTION

This digital AC current clamp meter is a stable, safe, and reliable instrument. The overall circuit design is based on a micro intelligent IC dual integral A/D converter, equipped with a full range overload protection circuit. It has a novel appearance and can be used to measure AC current, AC/DC voltage, resistance, diodes, and circuit on/off tests. It is a high-performance specialized electrical instrument.

Ⅱ. GENERAL SPECIFICATION

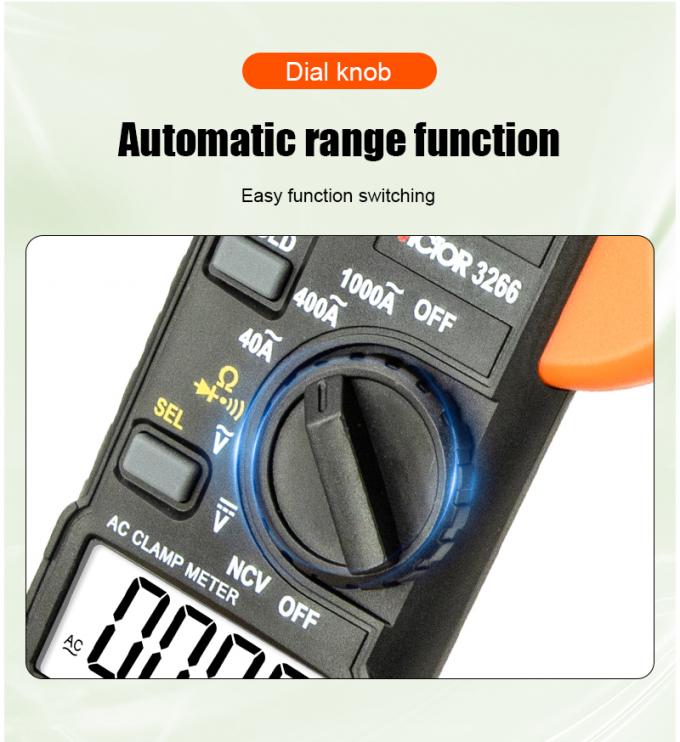

• General characteristics: Maximum voltage between voltage input terminal and ground CAT II 600VDisplay method: LCD display, with a maximum reading of 4000Measurement principle: Double integral A/D conversion, automatic rangeMeasurement rate: 3 times/second

  Unit display: with functions and display of unit symbols for electricity consumption

  Polarity display: Negative polarity input displays a “-” symbol

  Excessive range display: “OL”

  Data remains displayed:

  Under voltage indication:

  Power supply: DC1.5V×2 SIZE AAA

  External dimensions: 222mm x 90mm x 35mm

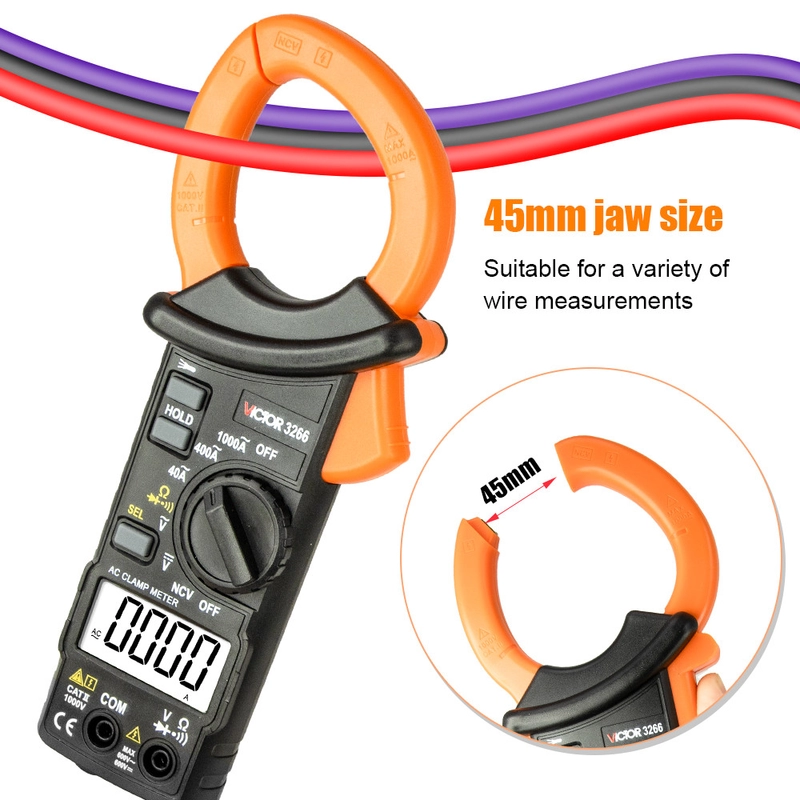

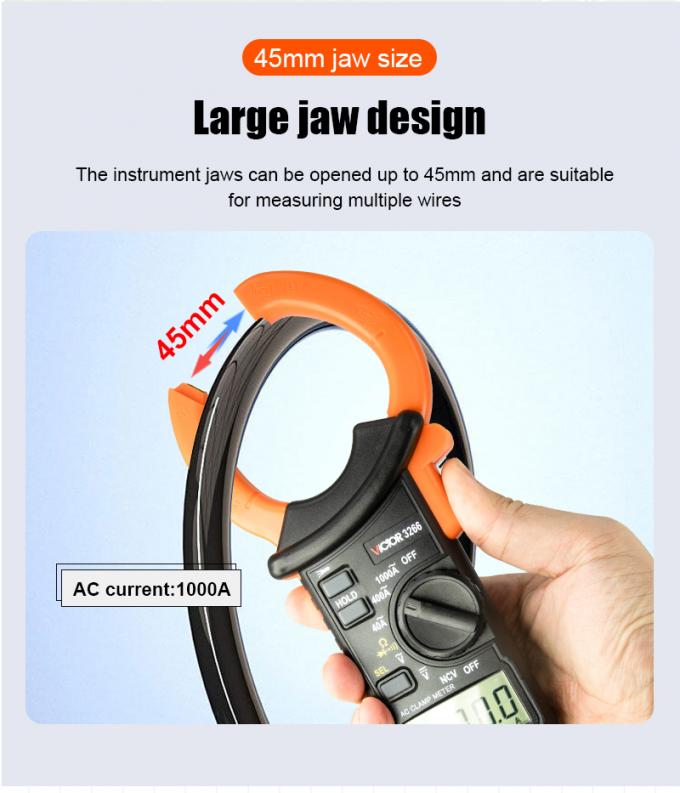

  Maximum size of jaw opening: 45mm

  Operating environment temperature: 5°C~35°C

  Storage temperature: -10°C~50°C

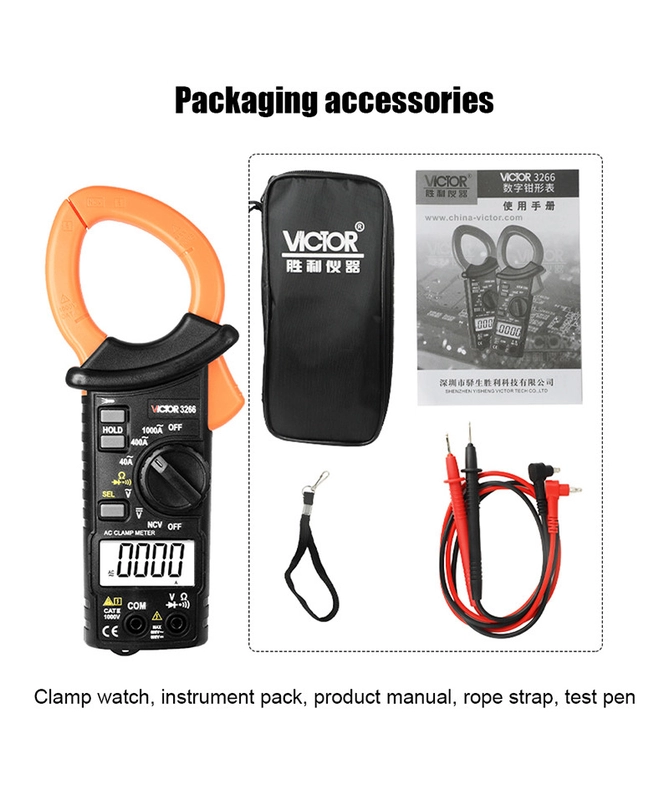

• Standard Accessories
• Manual 1pc
• Test leads 1pair
• Leather bag 1pc
• Packing box 1pc
• 1.5V SIZE AAA Battery 2pcs

• 	3266

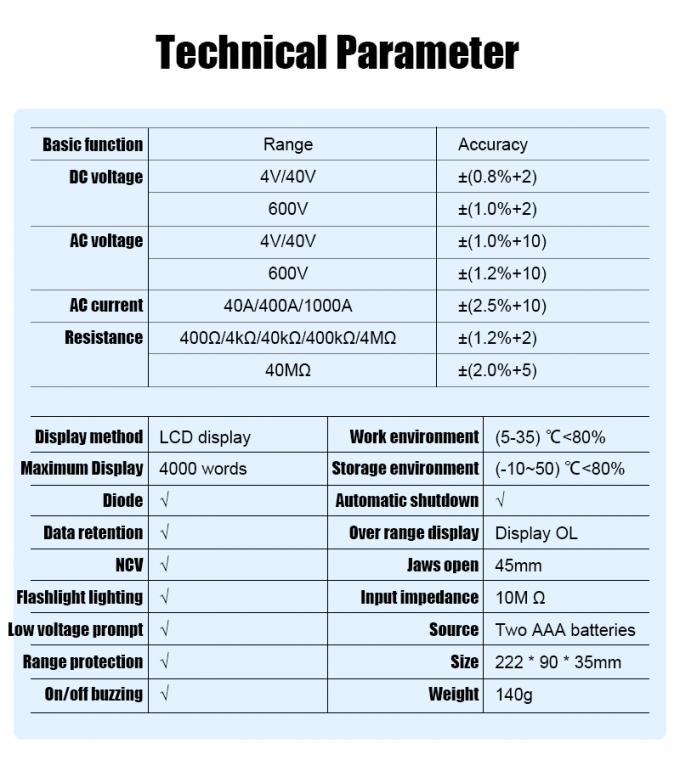

  Basic Function	Range	Accuracy
  DCV	4V/40V	±(0.8% reading+2 words)
  	600V	±(1.0% reading+2 words)
  ACV	4V/40V	±1.0% reading+10 words)
  	600V	±(1.2% reading+10 words)
  ACA	40A/400A/1000A	±(2.5% reading+10 words)
  Resistance	400Ω/4kΩ/40kΩ/400kΩ/4MΩ	±(1.2% reading+2 words)
  	40MΩ	±(2.0% reading+5 words)
  Diode Test	yes	Display the approximate value of forward voltage drop (open circuit voltage is about 2.3V)
  Continuity test	yes	When it is about ≤ 50Ω, the buzzer will sound (open circuit voltage is about 2.1V)
